Identifying bodies and components. First, you’ll need an example design to play with. Download our pulley and tensioner sample file here.
Once downloaded, swing open the data panel in fusion 360, navigate to a project, and select the upload button. Open your uploaded design, and let’s focus on the browser for a bit. Copy bodies in fusion 360.
Fusion 360 bodies can be copied similarly to sketches. We can use the move command by dragging the directional arrows, typing out an exact value in the dialog, or by the free form square in the middle of the arrows. Of course, you can also.
In this video we will explore nearly all the different ways to create a form body but focusing on why you might want to or not want to use the tools. Message 3 of 3. There is no conversion from a brep body (solid) to a form body (tspline).
That conversion is not mathematically possible. You can only convert one face at a time. Back to learn & support.
Get started in fusion 360; Go to the fusion 360 forums. We’ll start by first jumping into the sculpting environment.

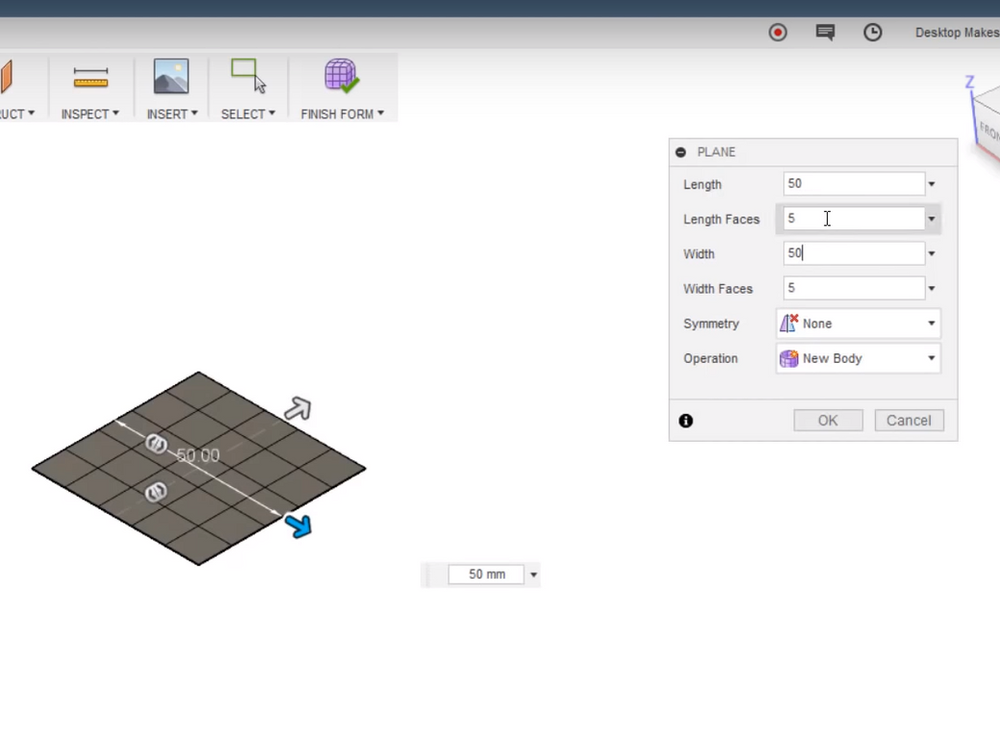

When you first open up fusion 360, it defaults to the modeling environment. Click on the create menu on the toolbar and select create form or simply click on the purple cube icon on the create menu. You’ll now notice that your menu items have changed and the icons now.
Duplicate an existing appearance and edit the settings. Import an image to create a custom texture. Select modify dropdown > activate appearance.
Alternatively, use the shortcut letter a. Start by finding an appearance closest to the desired appearance. Drag and drop the appearance to the top area titled in this design.
How to convert a mesh body to a solid or surface body. To start, on the toolbar, navigate to the mesh tab. Expand the modify menu and then click convert mesh.
In the canvas or the browser, select the mesh body you want to convert. If the mesh body has more than 10,000 faces, you can still convert it. However, it will take a significant amount.
Save your model as an stl. Download and install autodesk memento (free beta) open the stl in memento. Use the export tool in memento to save the model as obj (quads).
In your fusion design, create a form, and use insert mesh to insert the obj into your design. Now use the convert tool to convert it into a sculpt body! Fusion 360 bodies vs components bodies.
Bodies are essentially collections of 3 dimensional features connected to one another, until they form a static representation of a part. People can create multiple bodies within a component. Modern top down design methodologies use the concept of bodies as the bed rock of its power.
Follow these steps to create a body from surfaces in fusion 360 : In the tool ribbon along the top of fusion 360 workspace, select the surface tab. Select ok to close the dialog and create the body.
The surface bodies need to form a completely enclosed watertight shape when stitched in order for the new body operation option to be. Watch thom tremblay perform a draft analysis in the sculpt workspace, fix defects, and discuss ways to thicken the model. This is a short excerpt from fusion 360:
Designing for plastics by thom tremblay. Fusion 360 rule #1. Having a basic understanding of the difference between bodies and components leads us to the dubbed rule #1 from the fusion 360 forum which is to always start your file off with a new component.
Now rule #1 was created by the fusion 360 community on the forums, and the idea is that if you always start with a component, you. When creating a new solid feature, the operation drop down dictates the nature of the new volume. New body treats the volume as a separate solid body from any other existing solids.
Join attaches the new volume to an existing body. Cut removes the newly created volume from an existing body. Intersect preserves only the volume.
